Product Overview

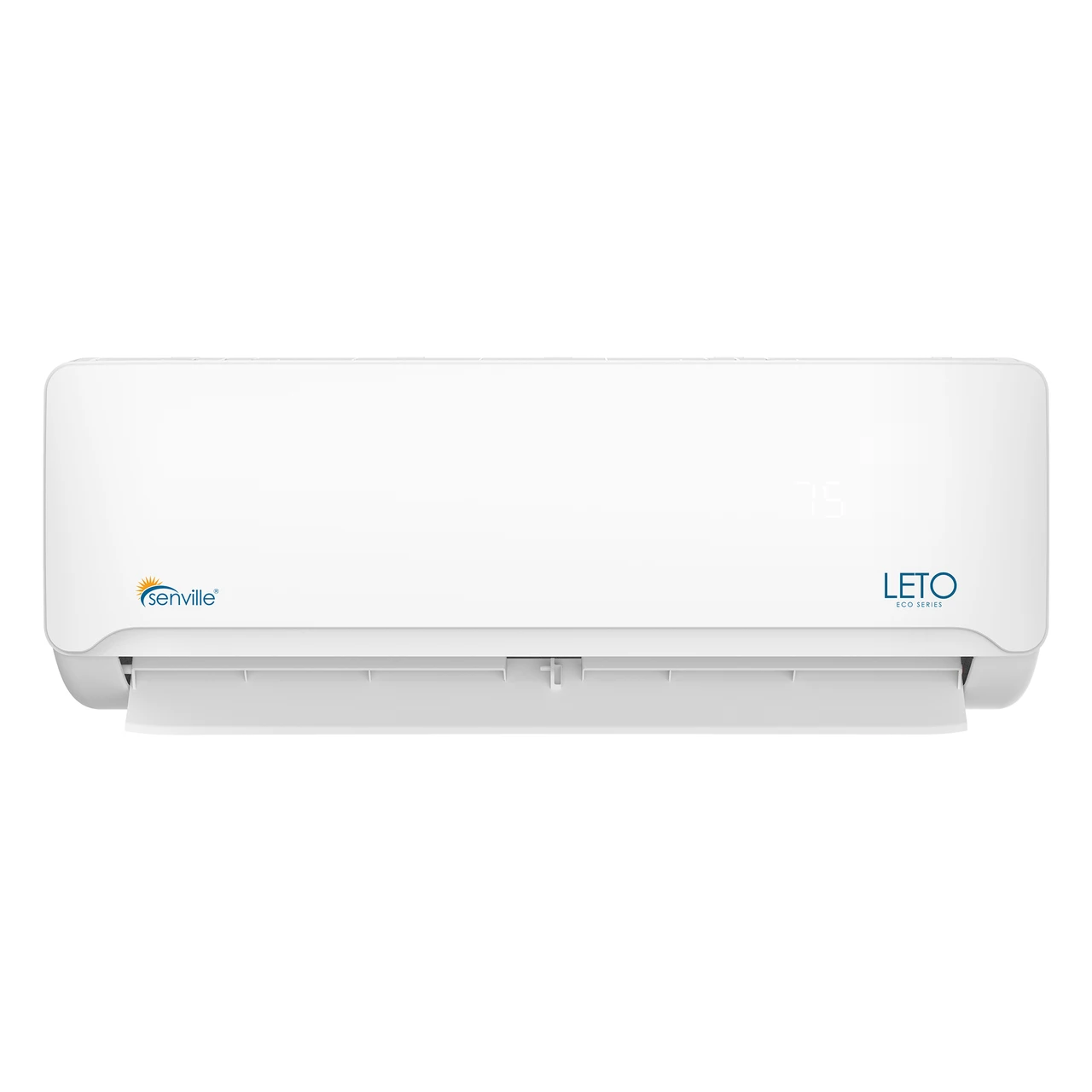

The Senville SENL-30CD/Y is a 30000 BTU mini split air conditioner and heat pump that offers a versatile and affordable solution to cooling and heating your home or business.
- 18.6 SEER (HE) High Efficiency Air Conditioner & Heater
- With Built-In Heat Pump (Up to -15C / 5F) Suitable for Most Climates
- DC Inverter Technology for Minimal Energy Consumption (Up to 48% Savings per Year)
- Built-In De-humidification Function, Fan and Turbo Function for Complete Climate Control
- Recommended for rooms sized 1250-1500 sq. ft.
Works with Alexa

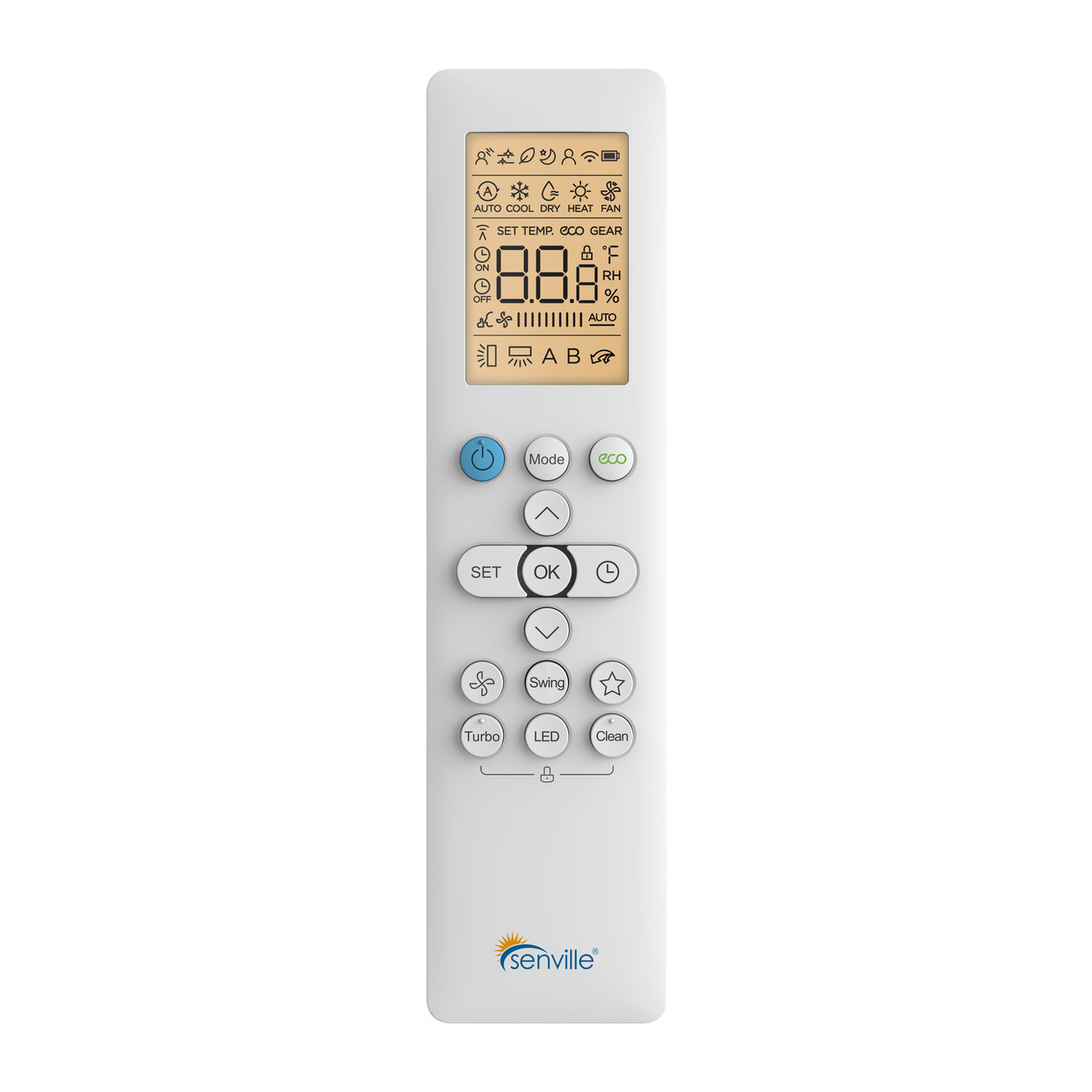

Control your Senville mini split air conditioner with the Alexa app or with voice control using an Alexa enabled device. Set routines, control multiple rooms from anywhere! Works with Alexa. Can be controlled remotely with any Android or iOS phone, via WiFi connection. Control your temperature settings from the office, or while on the road for more efficiency and superior control, as long as you have an internet connection. Great for vacation homes or for better efficiency and temperature control.
High Efficiency Inverter
Senville combines the affordability, efficiency and advanced Eco-friendly performance, with its Inverter technology. The results are drastic reduction of energy usage by up to 20%, ultimately making it one of the most efficient systems with Inverter Technology. Its technology like this that helps the ductless system to reach such high SEER ratings. Opt for a split system with Inverter Technology to ensure that you are minimizing your energy costs.
5 Year Warranty
All Senville models are backed by a comprehensive 5 year warranty designed to protect your purchase. All warranty claims are processed by the North American Headquarters of Senville, ensuring the highest levels of customer support and satisfaction. This 5 year warranty offers coverage on the compressor and a 5 year warranty on other parts. You can rest assured knowing that your purchase will be protected for up to 5 years, and we know that we are providing you with the highest quality product available.
Installation Kit + Accessories Included
Senville includes a standard 16 Ft. installation kit with all mini split models, which keeps your overall installation cost low. These units come pre-charged with R410A refrigerant and include the necessary piping for installation and hook up. Many inferior split units, may not include these parts, which eventually adds to your costs. Our Senville models come equipped and ready for installation from the moment your arrive at your door, with minimal additional cost. **PROFESSIONAL INSTALLATION REQUIRED**
Documentation and Certifications
- ETL Certified
- AHRI Certified (View Certificate)
- EnergyGuide (View EnergyGuide Label)
- Installation Manual (View Installation Manual)
Technical Specifications
| Model Number | SENL-30CD-Y |
| Style | Ductless Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V,1Ph,60Hz |
| Voltage Range | 187-253 |
| SEER | 18.6 |
| EER | 10.5 |
| Cooling (Range) | 7200~31600 |
| Input (W) | 2855 |
| Rated current A | 12.4 |
| Heating (Range) | 10600~32500 |
| Input (W) | 3250 |
| Rated Current (A) | 14.2 |
| HSPF4 | 9.5 |
| HSPF5 | 7.7 |
| COP W/W | 2.71 |
| Minimum Circuit Ampacity (A) | 23 |
| Max. Fuse (A) | 30 |
| Indoor Dimensions (WxDxH) (in.) | 49.57x11.1x14.25 |
| Indoor Air Flow (H/M/L) CFM | 794.12/617.65/470.59 |
| Indoor Noise Level (H/M/L) dB | 51.5/47.5/44 |
| Outdoor Dimensions (WxDxH) (in.) | 37.24x16.14x31.89 |
| Outdoor Noise Level dB | 61.5 |
| Outdoor Air Flow (Max) CFM | 1764.71 |
| Refrigerant Type | R410A/97 |
| Refrigerant Pre-charge | 25 Ft. |
| Connection Wiring | 14*4 AWG |
| Thermostat Type | Remote Control |
| Works with Alexa | Alexa Enabled |
| Warranty | 5 Years Compressor / 5 Years Parts |
| Application Area (8 Ft Ceilings) | 1500 sq. ft. |
