36000 BTU Quad Zone Mini Split Air Conditioner - Heat Pump - SENA/36HF/Q

Senville

CAD $4,699.99
36000 BTU Quad Zone Mini Split Air Conditioner - Heat Pump - SENA/36HF/Q
SKU:
SENA-36HF-Q9999
UPC:
893088001157
Availability:
Ships in 2 to 3 business days
Shipping:
Free Shipping
Adding to cart… The item has been added

Product Overview

Senville · AURA Series

SENA-36HF/Q Quad-Zone Mini Split and Heat Pump

36,000 BTU of independent comfort across four zones.

ENERGY STAR certified cooling and heating for four independently controlled areas. Select the indoor-unit capacities that suit the four zones, with cold-climate heating down to -30 °C.

Down to -30 °CCold-weather heating
Up to 1,350 sq. ft.Recommended coverage
Four zonesIndependent comfort
ENERGY STARCertified efficiency

Performance at a Glance

23SEER2
10.7HSPF2-4
13EER2
-30 °CMinimum heating temperature
R454BRefrigerant
Senville AURA outdoor heat-pump unit installed beside a home in winter
Cold-climate comfort

Heating Down to -30 °C

The AURA cold-climate heat pump is designed to continue providing heat at outdoor temperatures down to -30 °C (-22 °F).

Why Choose the SENA-36HF/Q?

Independent four-zone comfortFour indoor units connect to one outdoor unit, allowing settings to be adjusted separately for each served area. Selectable indoor capacitiesChoose 9,000 / 9,000 / 9,000 / 9,000, 9,000 / 9,000 / 9,000 / 12,000, 9,000 / 9,000 / 9,000 / 18,000 or 9,000 / 9,000 / 12,000 / 12,000 BTU above, then have a professional confirm the sizing for each zone. Efficient cold-climate operationThe 23 SEER2 system is ENERGY STAR certified and is designed to provide heating down to -30 °C (-22 °F).
Included with your system

Everything You Need to Get Started

Senville AURA multi-zone outdoor heat-pump unit
Outdoor unitSENA-36HF/Q system
Senville AURA wall-mounted indoor unit
Four indoor unitsSelected capacity combination
Senville AURA wireless remote control
Remote controls and Alexa kitWireless remotes plus USB kit

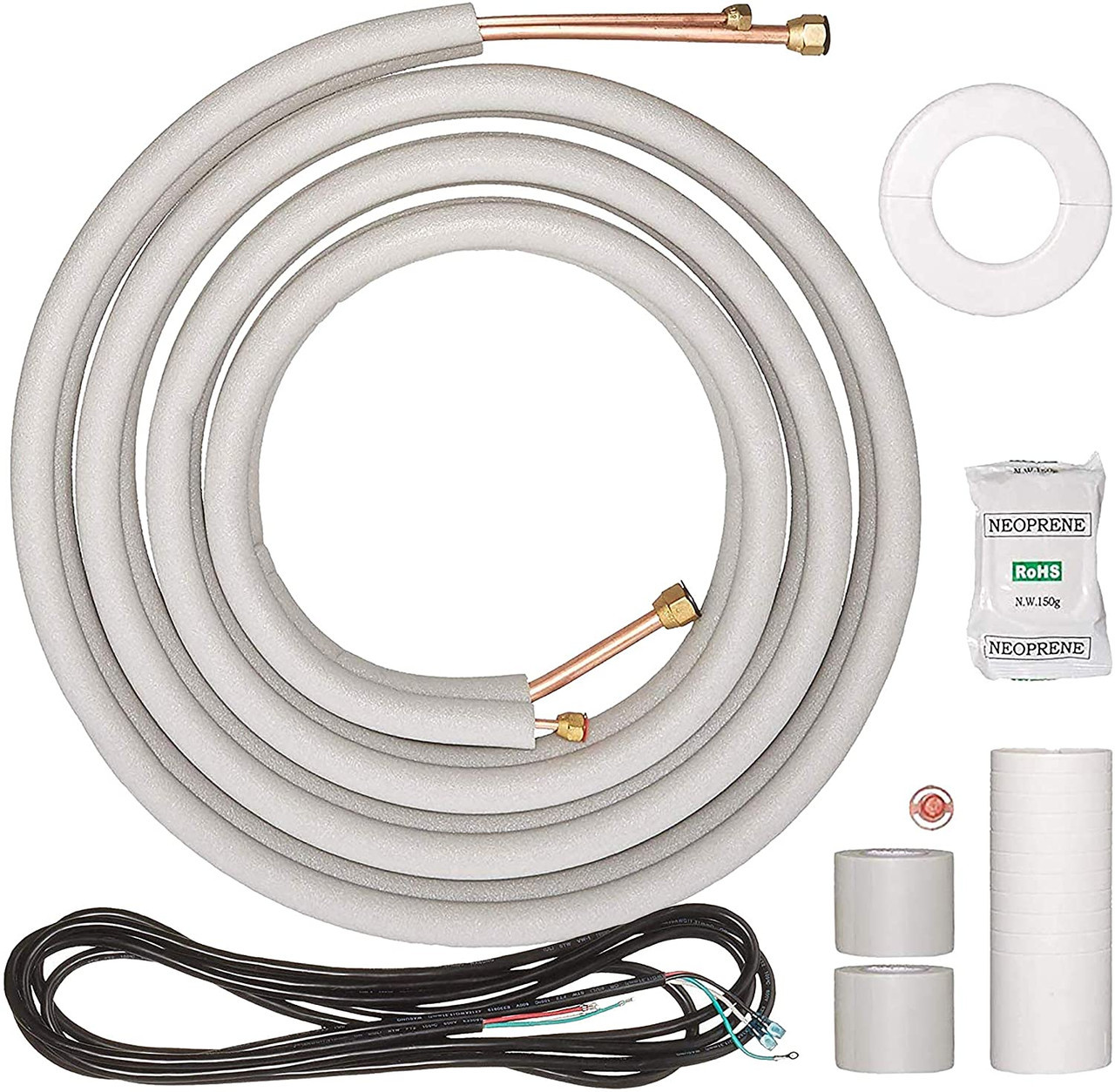

Insulated installation kit for a Senville mini split
Four installation kits16 ft. each or selected upgrades
Indoor-to-outdoor mini split wiring harness
Wiring harnessIndoor-to-outdoor connection
Four 16 ft. installation kits included at no charge
The selector also allows one, two, three or all four kits to be upgraded to 25 ft.
Pre-charged for up to 125 ft. total
The outdoor unit contains an R454B refrigerant pre-charge for a combined installation length of up to 125 ft.
Practical options

Complete Your Installation

Senville line set cover kit
OPTIONAL · SOLD SEPARATELY

Line set cover

Helps protect and conceal exposed refrigerant lines on the exterior of the building.

View accessories →
Outdoor wall-mount bracket for a mini split condenser
OPTIONAL · SOLD SEPARATELY

Outdoor wall bracket

The 18,000-36,000 BTU bracket is listed for this capacity range; suitability still depends on the installation surface and local requirements.

View bracket →
Insulated refrigerant line set
SELECTABLE UPGRADE

25 ft. installation kits

Upgrade one, two, three or all four included 16 ft. kits to 25 ft. using the product options above. Have the installer confirm each zone's required length and any refrigerant adjustment.

View line sets →

Buy with Confidence

Manufacturer warranty

10 years on the compressor · 5 years on parts
Qualifying professional installation is required under the warranty terms.

Eligible for Tax Credit

Final eligibility depends on the purchaser, jurisdiction, applicable program requirements and the completed installation.

Professional installation required. The R454B system must be installed and commissioned by a professional with the qualifications required in the installation jurisdiction. Have the installer confirm line routing, drainage and electrical requirements for all four zones.
▶▼Technical Specifications+−
Model Number SENA-36HF/Q
Style Ductless Mini Split AC With Heat Pump
Number of Zones 2-5
Power Supply (V-Ph-Hz) 208/230V, 1Ph, 60Hz
Voltage Range 187–253
SEER2 23
EER2 13
Cooling Capacity (BTU) 36,000
Cooling Range (BTU) 9,000~43,000
Cooling Input Range (W) 600~4000
Cooling Current Range (A) 5.2~17.8
Heating Capacity (BTU) 36,000
Heating Range (BTU) 10,000~44,000
Heating Input Range (W) 600~3750
Heating Current Range (A) 5.2~16.6
HSPF2-4 10.7
HSPF2-5 8.5
COP W/W 4
Minimum Circuit Ampacity (A) 37
Max. Fuse (A) 40
Outdoor Air Flow (Max) CFM 3037.2
Outdoor Noise Level dB 65
Outdoor Dimensions (WxDxH) (in.) 38.58 x 16.34 x 38.39
Outdoor Weight 211.86 Lbs
Minimum Outdoor Heating Temperature -22°F / -30°C
Refrigerant Type / Charge R454B / 134.04 oz
Refrigerant Pre-charge 125 Ft.
Warranty 10 Years Compressor / 5 Years Parts

Frequently Asked Questions Before Purchase

▶▼What is included with this quad-zone bundle?+−

The bundle includes one outdoor unit, four selected indoor units, wireless remote controls, the Alexa USB kit, four 16 ft. installation kits, an indoor-to-outdoor wiring harness and the manuals. Installation labour and building-specific materials are not included.

▶▼How cold can it be outside while heating?+−

The SENA-36HF/Q is designed to provide heating down to an outdoor temperature of -30 °C (-22 °F).

▶▼Which indoor-unit combinations can I choose?+−

The page offers 9,000 / 9,000 / 9,000 / 9,000, 9,000 / 9,000 / 9,000 / 12,000, 9,000 / 9,000 / 9,000 / 18,000 and 9,000 / 9,000 / 12,000 / 12,000 BTU combinations. Select the combination above and have a professional confirm sizing for each room.

▶▼Can I install the system myself?+−

No. Professional installation is required for refrigerant handling, system commissioning and compliance with the warranty terms.

▶▼How does the warranty work?+−

The product page specifies 10 years of compressor coverage and five years of parts coverage, subject to Senville's installation, registration and maintenance conditions.
