Product Overview

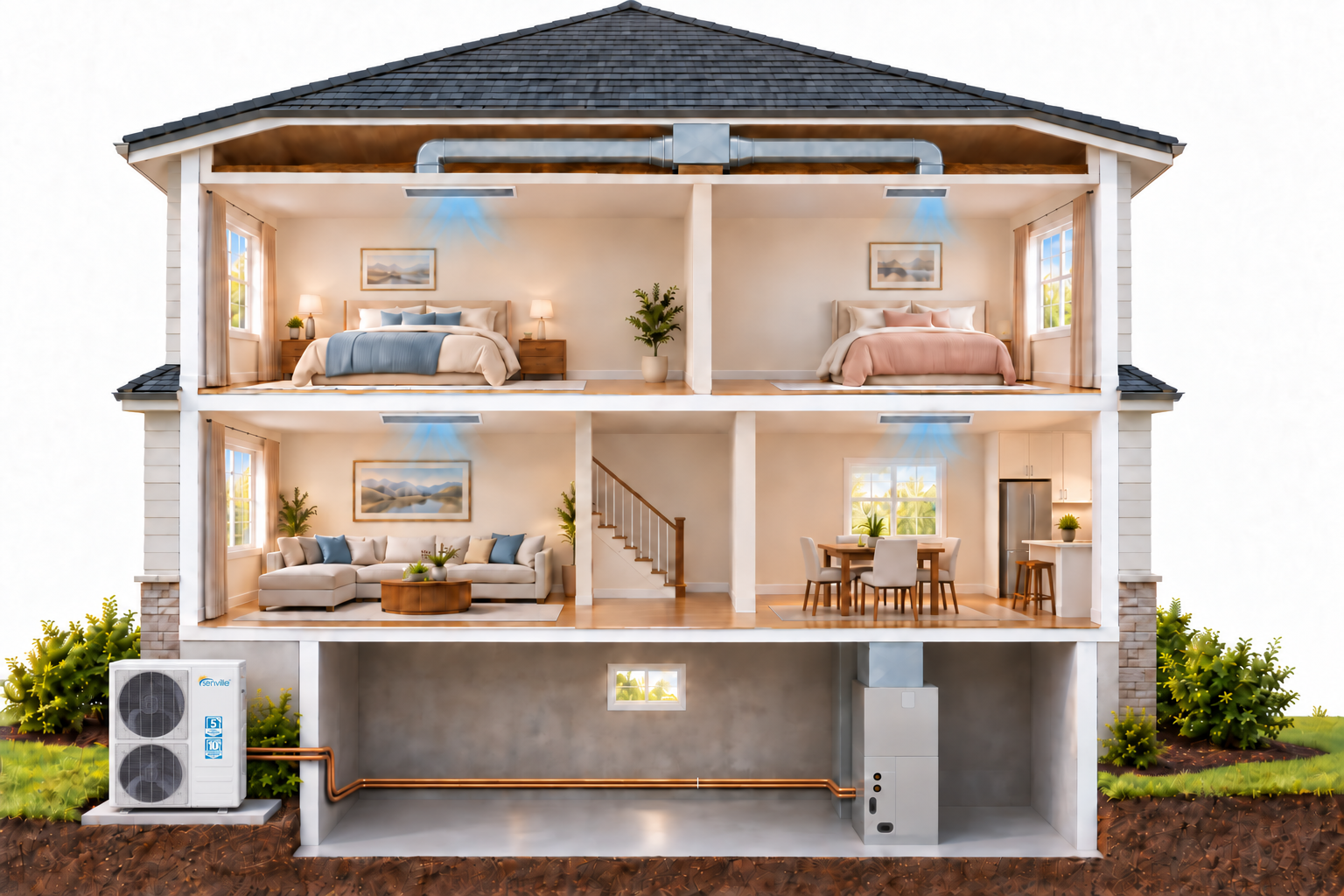

The Senville Central Mini Split System allows you to upgrade your existing central system to the latest in DC Inverter Technology. With the same energy efficiency as a standard mini split, you can enjoy up to 30% in energy savings compared to a traditional central system.
**Does NOT include line set**
Technical Specifications
| Model Number | SENDC-60HF |
| Style | Central Air Conditioner with Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 16 |
| EER2 | 10 |
| Cooling Capacity (BTU) | 54000 |
| Cooling Range (BTU) | 11400~56300 |
| Cooling Input Range (W) | 1540~6430 |
| Cooling Current Range (A) | 7.2~28.4 |
| Heating Capacity (BTU) | 56000 |
| Heating Range (BTU) | 8100~64500 |
| Heating Input Range (W) | 725~5970 |
| Heating Current Range (A) | 4~30.6 |
| HSPF2-4 | 9 |
| HSPF2-5 | 8 |
| COP W/W | 3.1 |
| Minimum Circuit Ampacity (A) | 40 |
| Max. Fuse (A) | 40 |
| Indoor Air Flow (Turbo/H/M/L) CFM | 1807.0 / 1583.3 / 1359.7 / 1136.0 |
| Indoor Noise Level (H/M/L) dB | 54.5 / 52 / 49.5 / 34.5 |
| Indoor Dimensions (WxDxH) (in.) | 21.02 x 24.49 x 52.99 |
| Indoor Weight | 162.92 Lbs. |
| Moisture Removal (L/H) | 5.87 |
| Outdoor Air Flow (Max) CFM | 2648.6 |
| Outdoor Noise Level dB | 65 |
| Outdoor Dimensions (WxDxH) (in.) | 37.48 x 16.34 x 52.48 |
| Outdoor Weight | 242.95 Lbs |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge oz | R454B / 183.42 |
| Thermostat Type | Wall Remote Thermostat |
| Warranty | 10 Years Compressor / 5 Years Parts |
