Product Overview

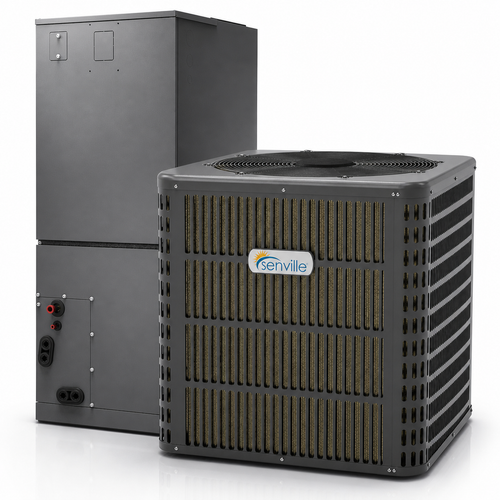

The 3 ton (36,000 BTU) heat pump system is a versatile solution for medium-sized homes needing balanced heating and cooling performance. Built for efficiency and durability, this central system maintains consistent indoor comfort while helping reduce energy costs. Its top discharge configuration makes it ideal for tighter installations, while the high-performance design ensures dependable operation in a wide range of climates.
Documentation and Certifications
- View AHRI Certificate and EnergyGuide Label
- Indoor Installation Manual (View Manual)
- Outdoor Installation Manual (View Manual)
- Service Manual (View Service Manual)
| Hyper Heat AHU — 36,000 BTU | SENTC-36TD-16 | |
| Specification | Value |
|---|---|
| Efficiency Ratings | |
| SEER2 | 18.6 BTU/W |
| EER2 | 11.7 BTU/W |
| HSPF2 (Region 4) | 9.0 BTU/W |
| COP (Heating) | 3.20 W/W |
| Cooling Performance | |
| Rated Cooling Capacity | 34,000 BTU/h |
| Cooling Capacity Range | 13,000 – 38,000 BTU/h |
| Cooling Input Power | 2,906 W (range: 460–3,600 W) |
| Cooling Current Draw | 13.2 A (range: 2.1–16 A) |
| Capacity @ 109°F Outdoor | 32,000 BTU/h |
| Capacity @ 5°F Outdoor | 34,000 BTU/h |
| Cooling Operating Range (Outdoor) | 5°F – 131°F |
| Heating Performance | |
| Rated Heating Capacity | 36,000 BTU/h |
| Heating Capacity Range | 11,000 – 39,000 BTU/h |
| Heating Input Power | 3,300 W (range: 600–3,600 W) |
| Capacity @ 47°F Outdoor | 36,000 BTU/h |
| Capacity @ 17°F Outdoor | 17,500 BTU/h |
| Capacity @ 5°F Outdoor | 27,000 BTU/h |
| Capacity @ –4°F Outdoor | 25,000 BTU/h |
| Heating Operating Range (Outdoor) | –4°F – 75°F |
| Electrical | |
| Power Supply | 208/230V, 60 Hz, 1-Phase |
| Indoor MCA / MOP | 5 A / 15 A |
| Outdoor MCA / MOP | 24 A / 30 A |
| Compressor RLA | 9.45 A |
| Outdoor Fan Motor RLA / Output | 2.3 A / 200 W |
| Indoor Fan Motor RLA / Output | 3.6 A / 375 W |
| Communication Wiring | AWG 25×3 Shielded |
| Refrigerant & Piping | |
| Refrigerant Type | R-32 |
| Factory Refrigerant Charge | 2.9 kg (102.3 oz) |
| Additional Charge Rate | 0.52 oz/ft (48 g/m) |
| Liquid / Gas Line Size | 3/8 in / 3/4 in |
| Max. Pipe Length | 246 ft (75 m) |
| Max. Height Difference | 98.4 ft (30 m) |
| Connection Method | Flared |
| Throttle Type (Outdoor / Indoor) | EXV / Piston |
| Compressor | |
| Compressor Type | Twin-Rotary DC Inverter |
| Compressor Model / Brand | KTM240D57UMT / GMCC |
| Airflow & Sound | |
| Indoor Airflow — High / Low | 1,110 / 520 CFM |
| Indoor Noise Level — High / Low | 50 / 38 dB(A) |
| Outdoor Airflow (Max) | 2,800 CFM |
| Outdoor Noise Level | 58 dB(A) |
| Dimensions & Weight | |
| Indoor Unit (W × D × H) | 21-1/32" × 21-1/32" × 49-7/32" |
| Indoor Net / Gross Weight | 137 / 151 lbs |
| Outdoor Unit (W × D × H) | 29-9/64" × 29-9/64" × 25" |
| Outdoor Net / Gross Weight | 143 / 151 lbs |
